Modeless Dialog

A window that appears as an overlay, enabling users to interact with both the main content and window content.

Overview

  • Available since: Quebec
  • A11Y: Not compliant

Modeless dialog is a container component that appears on top of the main content without blocking user interaction with the underlying page. It presents non-critical information, options, or settings while allowing users to interact with the rest of the application.

ServiceNow link
Modeless Dialog code documentation

UIB and developer guidance

Figma link
Modeless Dialog Figma component

Horizon components and styles library

Loading playground

When to use

Use modeless dialog when you want to present additional options, settings, or information without blocking the user's ability to interact with the main content. It is suitable for non-essential tasks and allows the user to multitask.

When not to use

Don’t use modeless dialog for critical information or actions that require immediate attention. For important tasks or messages, use a modal or another component that requires the user's full focus and prevents interaction with the underlying content.

Anatomy

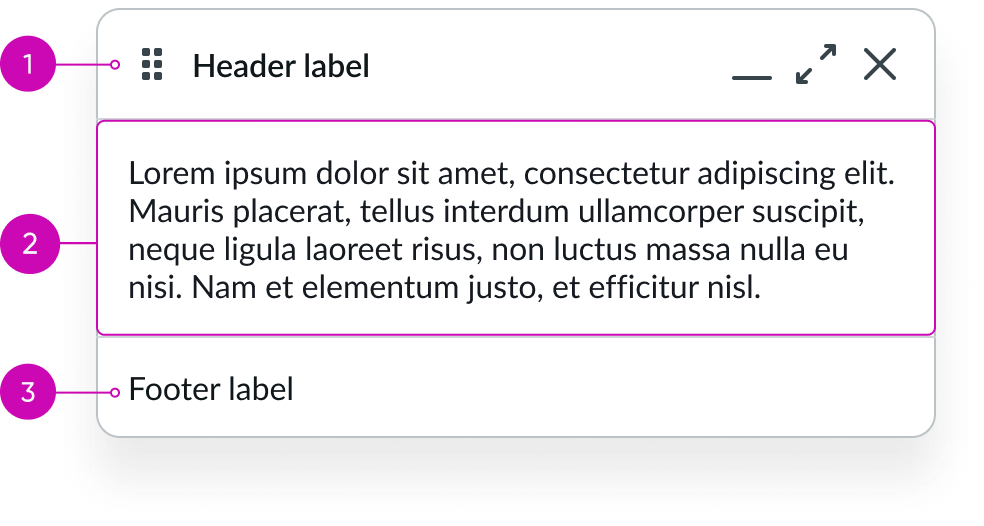

anatomy of modeless dialog
  1. Header panel: Area for adding the title and actions that are independent of the rest of the component (for example, window controls)
  2. Content slot: Space for subcomponents and custom content
  3. Footer panel: Areas for adding text and buttons related to the content in the content area

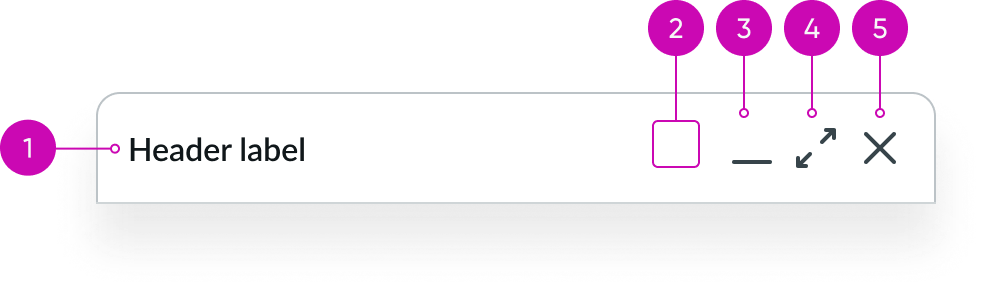

modeless dialog header with annotations
  1. Title area: Header area where the customizable dialog title appears
  2. Action slot (optional): An empty slot where you can add a button to trigger an additional action
  3. Minimize button (optional): You can display the minimize button in the header panel; it’s hidden by default
  4. Maximize button (optional): You can display the maximize button in the header panel; it’s hidden by default
  5. Close button (optional): You can display the close button in the header panel; it’s hidden by default

Subcomponents

See usage guidelines for icon gallery

See usage guidance for iconic button

Usage

Use the modeless dialog to show components and content after the user selects an element to open it. Use a modeless dialog when you want the user to be able to interact with the current page and the dialog. Examples of when you can use the modeless dialog are: for chat functions, help information, or other types of content.

Not to be confused with similar components such as:

  • Modal dialog: A container that appears above the the application content to provide information or ask for a decision. While the modal is active, the app content behind is disabled. 
  • Popover: A temporary panel that floats over other content to provide contextual help and information when a user selects a triggering element.
    For more information, see the usage guidelines for these components: Modal dialog and custom popover.

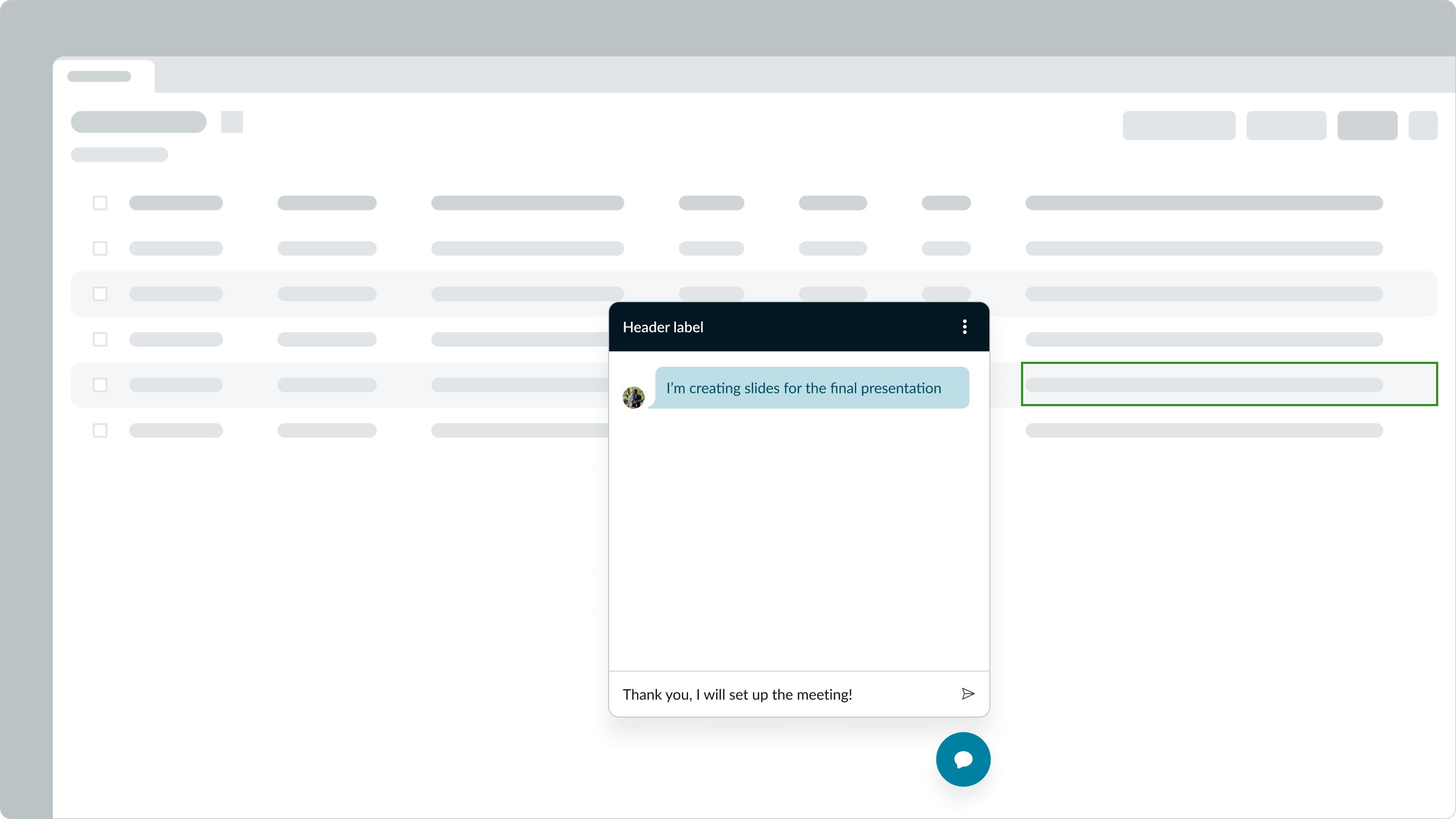

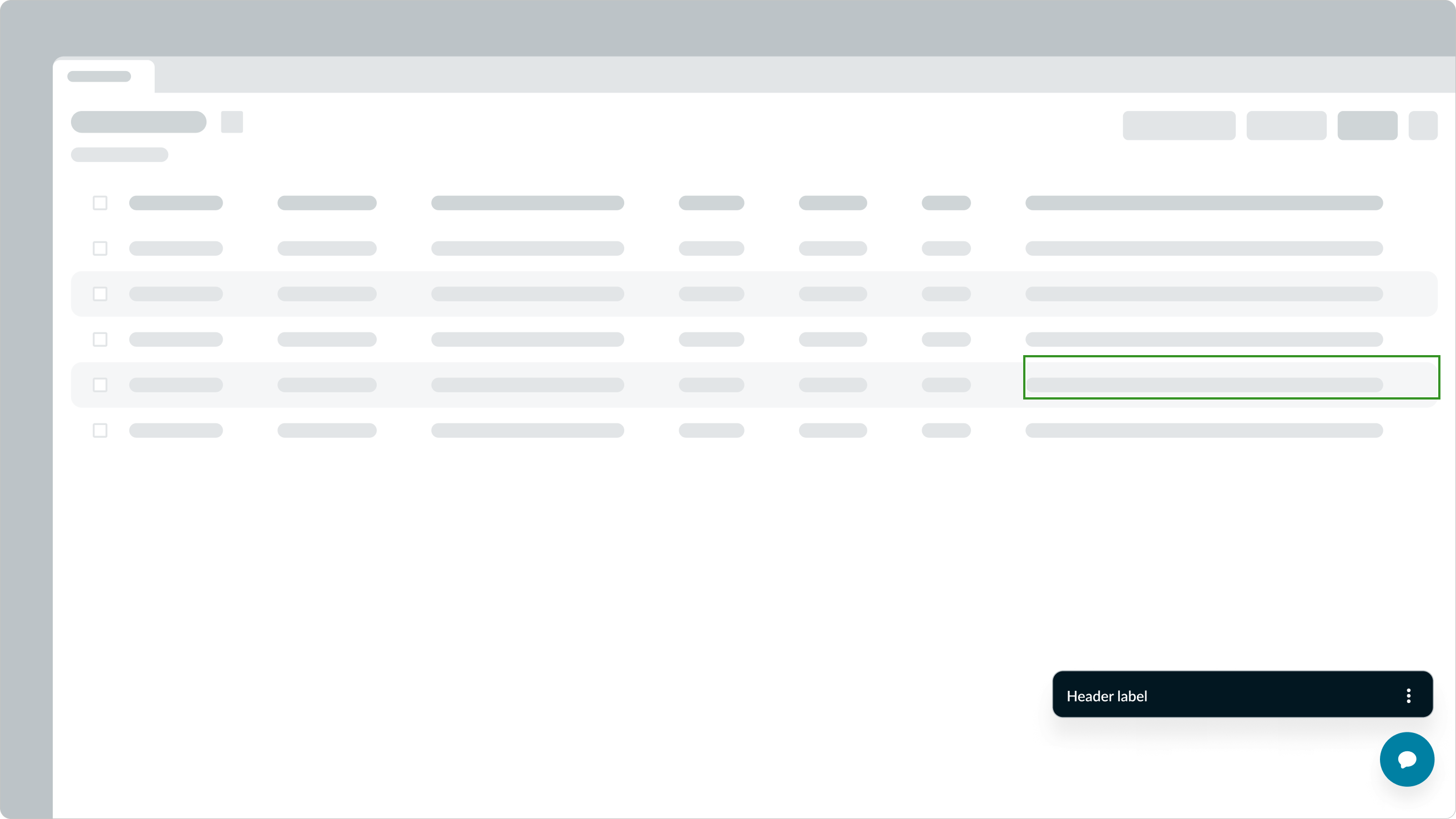

modeless dialog used for chat feature

In this example, the modeless dialog is used for a chat function.

Variants

Learn about the attributes of modeless dialog.

Colors

Modeless dialog has the following header color variants: initial, primary, and secondary. This only affects the header background color.

Initial

The initial color variant shows a white background for the entire dialog. This is the default.

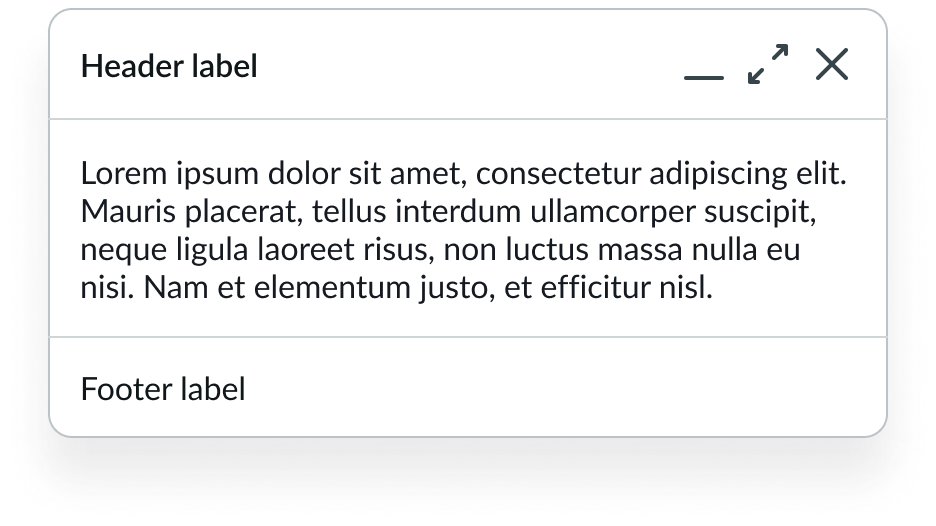

An example of the initial default color variant that shows a white background for all 3 panels

Primary

The header background color is more emphasized and best when you want a stronger, more visible header that draws the user’s attention.

An example of the primary color variant with a dark background for the header panel

Secondary

The header background color is less emphasized than the primary, but it’s also good for when you want a stronger presence than the default initial type.

Example of secondary color variant with a lighter version of the dark header background

Sizes

Although there is a default size, you can configure the modeless dialog width and height based on your individual use case. When determining the size, consider the component's intent and the type of content it displays. For example, a modeless dialog used for a chat feature may need to be larger in order to comfortably fit conversations, while a smaller size can be used for simpler content like a list.

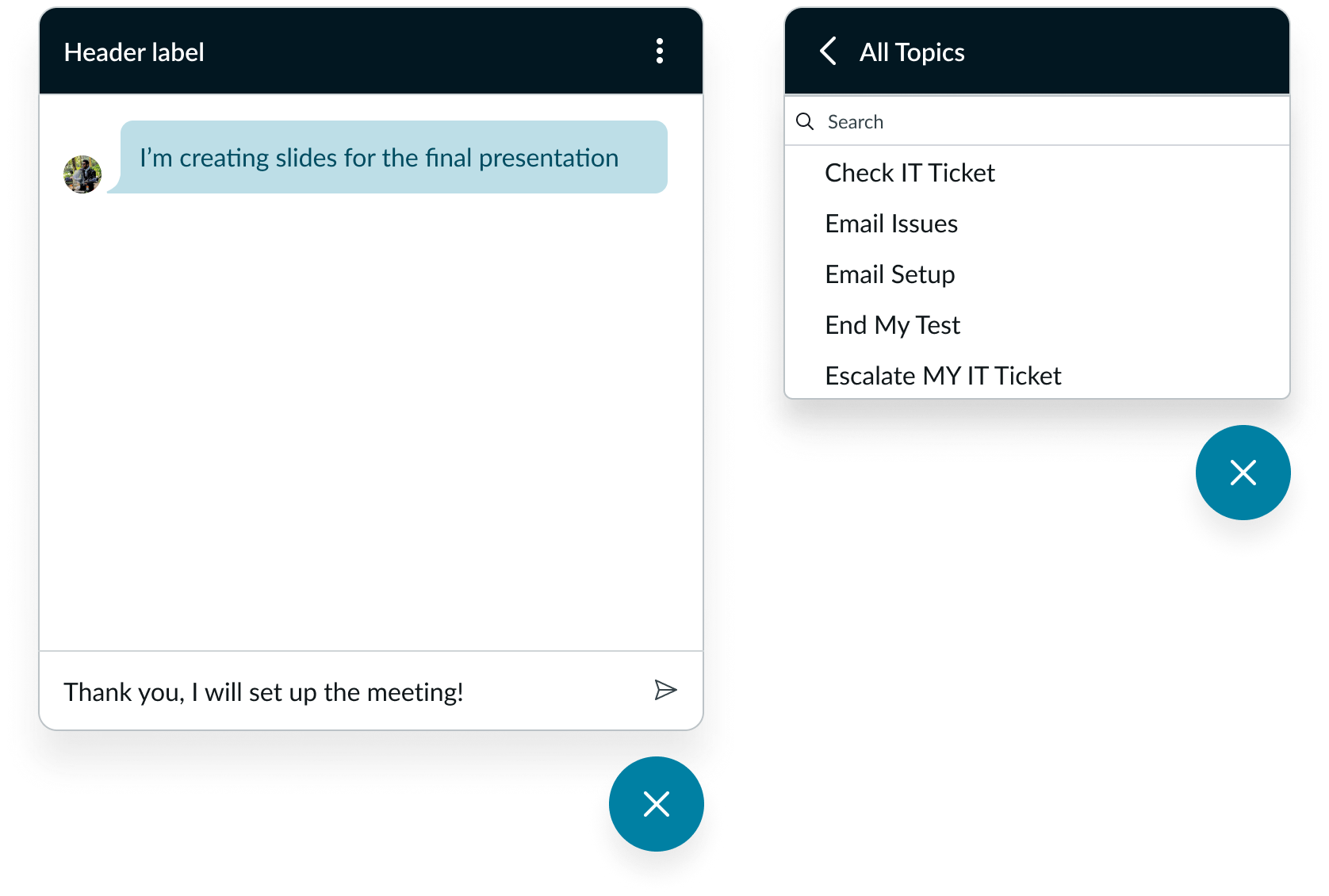

examples of different modeless dialog sizes

In this example, there are two different sizes for the modeless dialog. On the left, the modeless dialog is being used for a chat feature. On the right, the modeless dialog is being used to filter through knowledge base topics.

Configurations

Learn how to customize modeless dialog by configuring the available properties.

You can configure the modeless dialog header title and add iconic buttons.

Title

You can define the modeless dialog title. If the title exceeds the width of the header container, the text wraps.

Action slot

You can add a button iconic in this empty slot to trigger an additional action.

Minimize and maximize

You can display minimize and maximize buttons that are hidden by default. When the user maximizes the dialog, it expands 100 percent to the viewport (excluding the navigation bar) or container.

Close

You can add a button that provides users with the ability to close the modeless dialog. By default, this button does not appear.

You can show or hide the header and footer panels in modeless dialog.

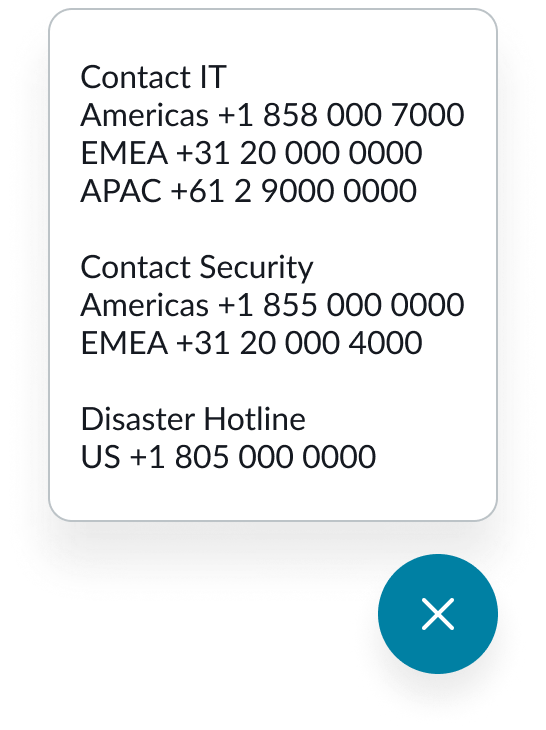

modeless dialog with no work panels

In this example, the header and footer panels are hidden.

You can include the header panel at the top of the modeless dialog when it needs a title to help explain its intent or purpose and action items.

modeless dialog with top work panel only

In this example, the header panel has a title that describes the contents in the modeless dialog.

You can include a footer panel on the bottom of the modeless dialog to provide context or additional elements. For example, a chat widow can provide a space for user input in the footer panel.

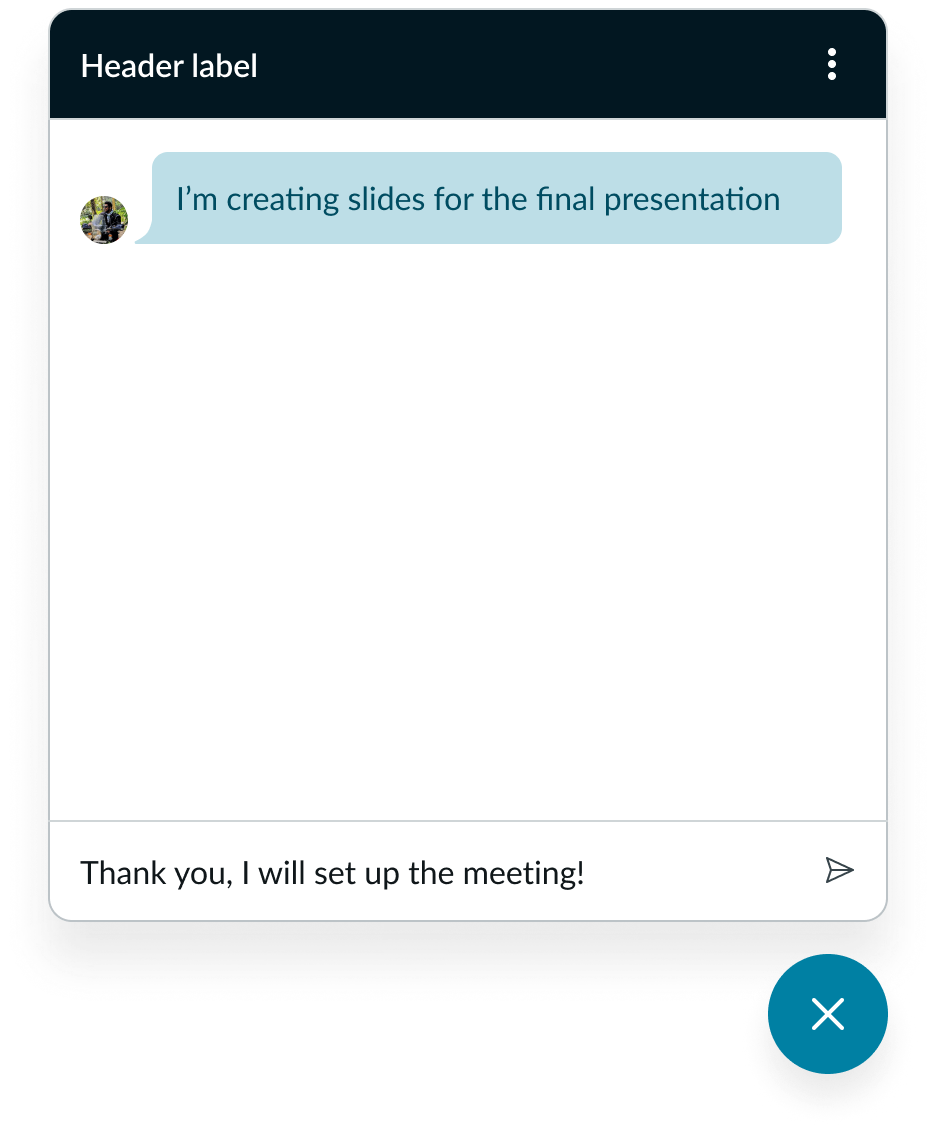

modeless dialog with top and bottom work panels

In this example, the header panel displays the company name with additional actions, and the footer panel allows them to enter text to chat with their team members.

Design recommendations

Learn how to apply modeless dialog in your design.

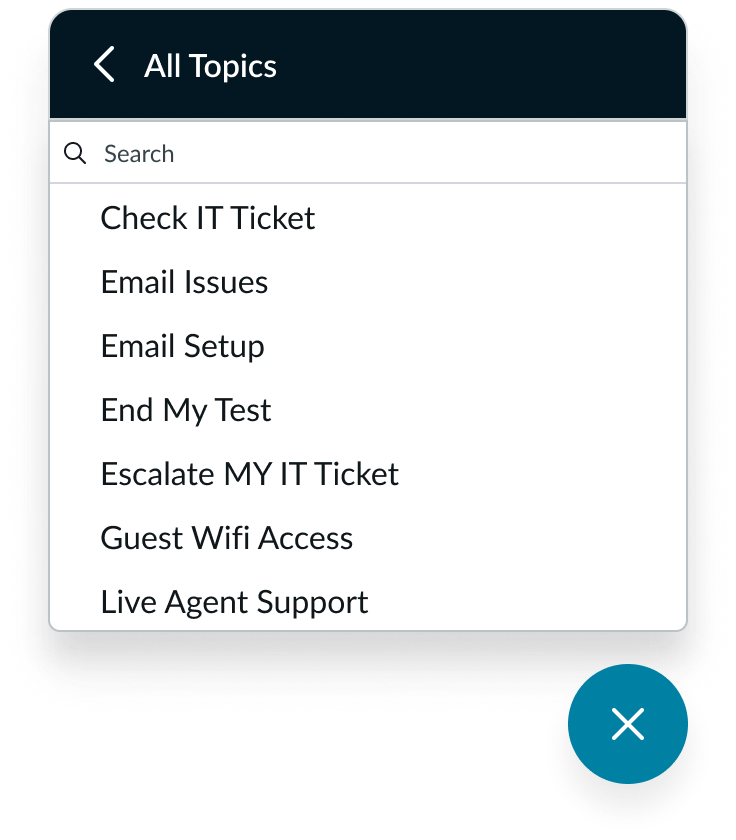

modeless dialog in close proximity to circular button
Do

Place the modeless dialog near the component that opened it to show a clear relationship.

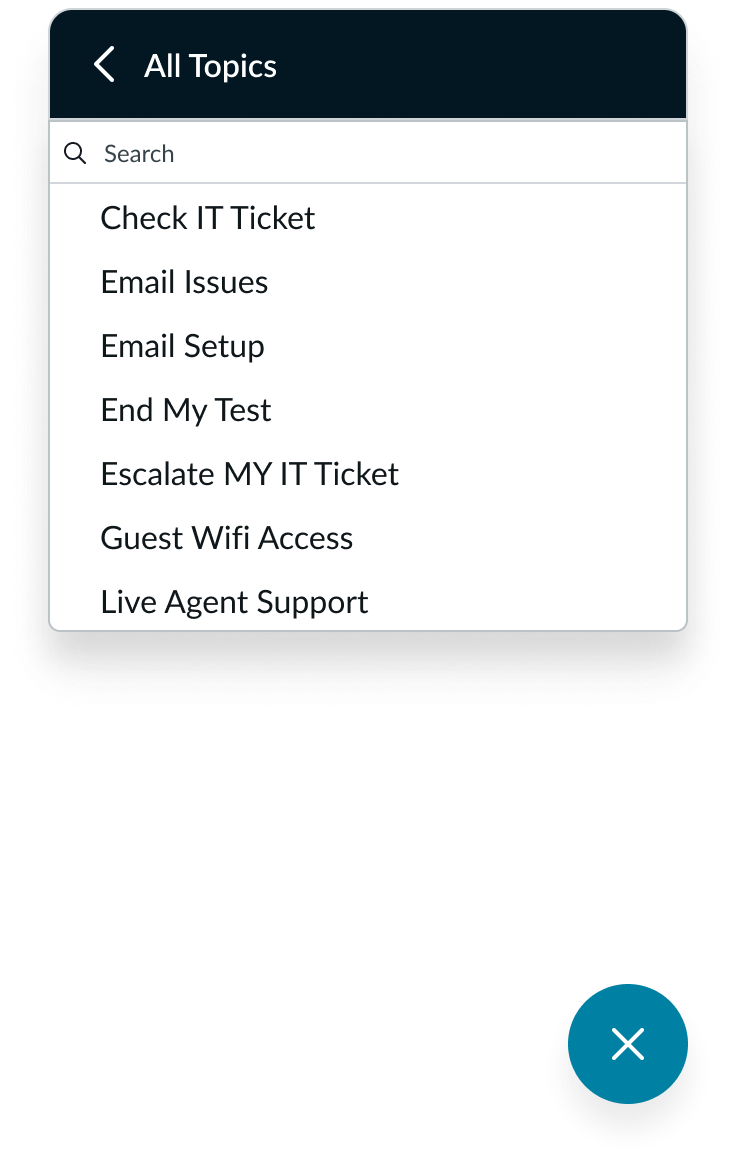

modeless dialog too far away from the circular button that initiated it
Don’t

Avoid placing the modeless dialog too far away from the component that opens it. When the distance between the two is too far, their relationship can be unclear.

an expand icon, video icon, and vertical ellipsis icon in the top work panel
Do

Each icon you use should have a clear meaning and associated action.

similar X icons in the top work panel
Don’t

Avoid using similar icons (or the same icon) for different actions.

Alignment and positioning

When the user triggers a modeless dialog, by default it hovers over the center of the experience. You can have it appear on the top left or right, or bottom left or right in the experience. Always position it close to the element that opens it. Users can interact with both the modeless dialog and the content in view.

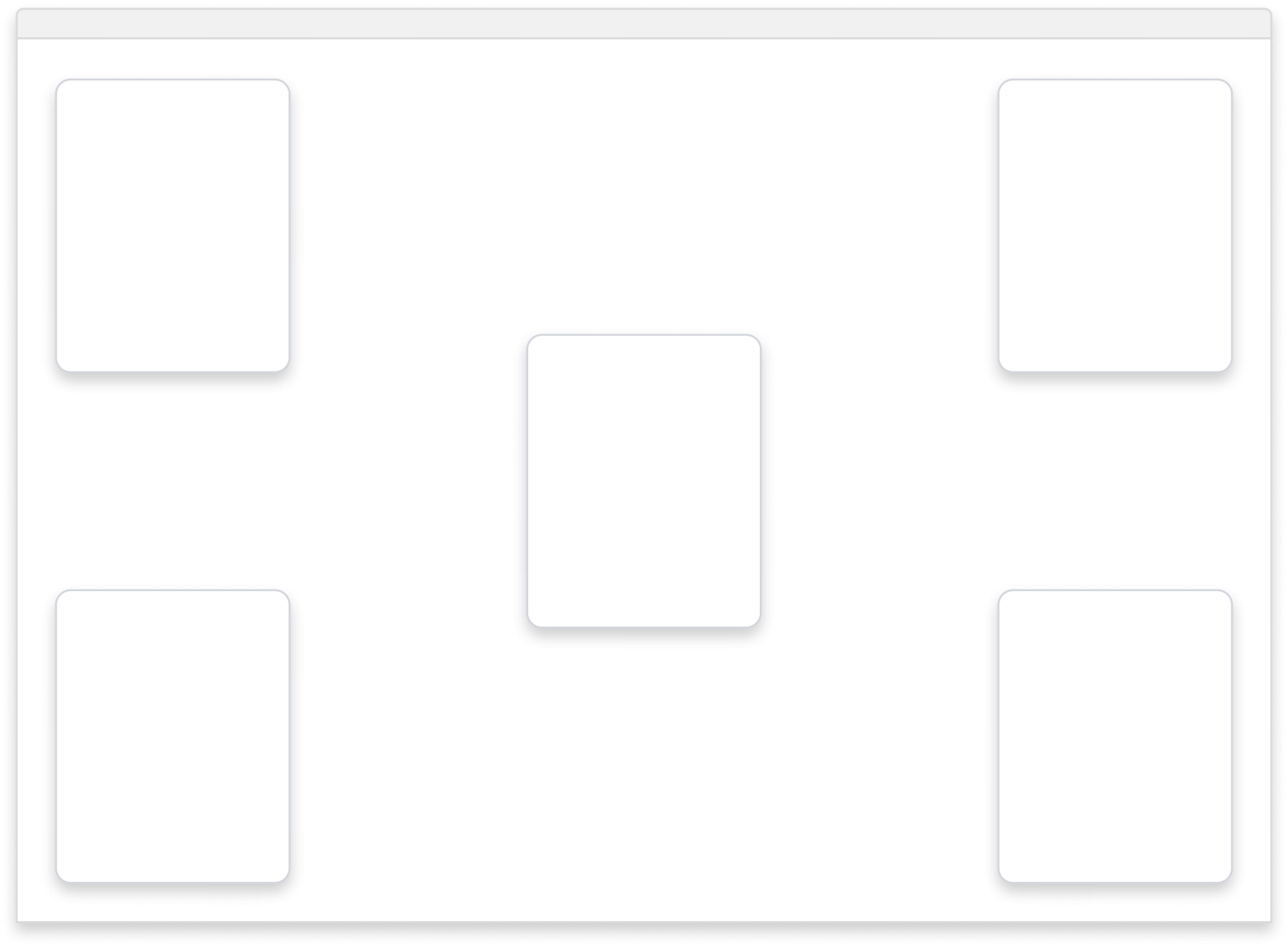

Shows the 5 different positions on a page

Each area where you can have the modeless dialog appear

Behavior

Learn how modeless dialog behaves when the display changes or a user interacts with the component.

Responsive behaviors

Learn how modeless dialog responds to changes in a container or display.

Fixed panels

If you include a header or footer panel, you can fix the panels to remain visible when a user scrolls the content.

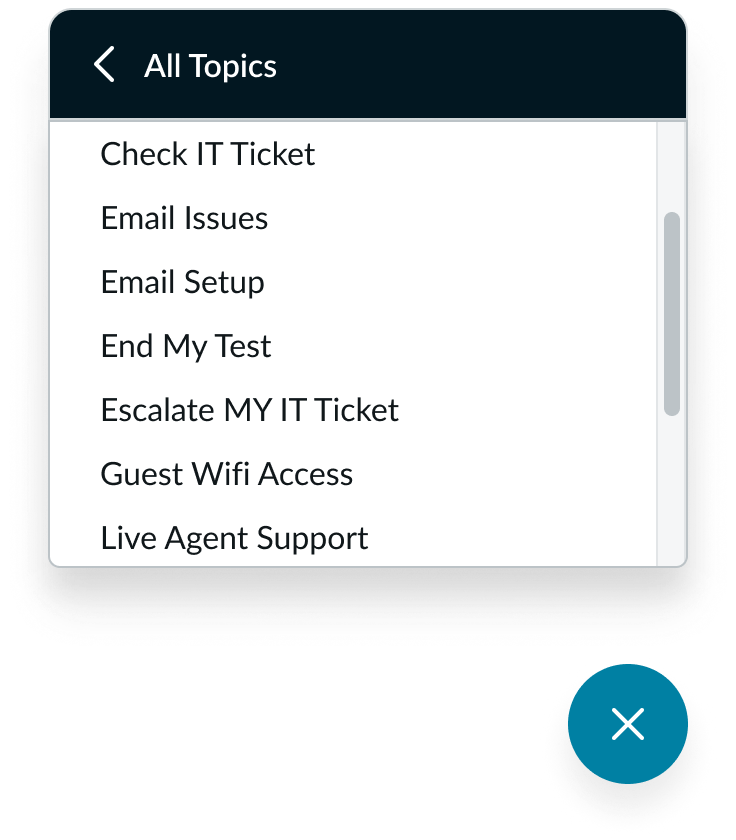

modeless dialog with work panel fixed at top during scrolling

In this example, controls for the modeless window appear even as the user scrolls down to view more content.

Interactions

Learn how modeless dialog responds when a user interacts with it.

Dragging and dropping

You can enable drag and drop functionality for modeless dialog.
When enabled, the user can move the position of the modeless dialog by selecting the header or footer work panel and using the drag and drop pointer to move the dialog to a new location.
This interaction is only available if the modeless dialog includes a header or footer panel.

Note: Users can also move the modeless dialog using keyboard keys. For more information, see the Usability section, Keyboard interactions below.

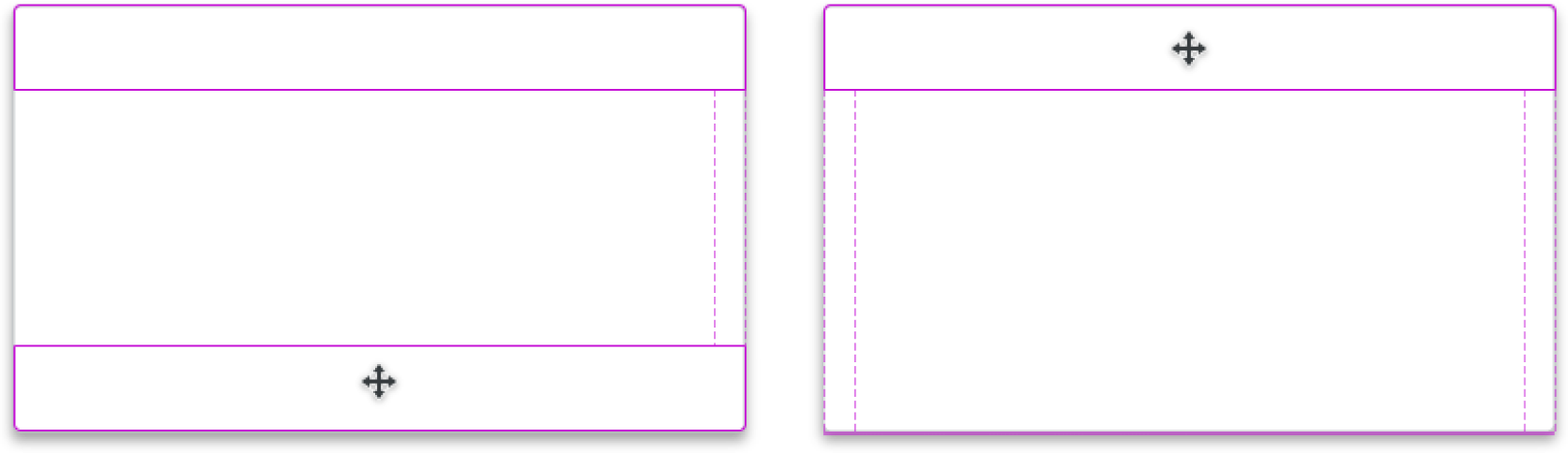

dragging and dropping user interaction for modeless dialog

In this example, the user can place their cursor on either the footer or header panel, then select it to enable the dragging functionality. They can then drop the modeless dialog anywhere in the experience.

Resizing

You can choose to enable the resize functionality for the modeless dialog.
When enabled, the user can resize the component by selecting the edge of the window and dragging their cursor horizontally, vertically, or at an angle.
Note: Users can also resize the modeless dialog using keyboard keys. For more information, see the Usability section, Keyboard interactions below.

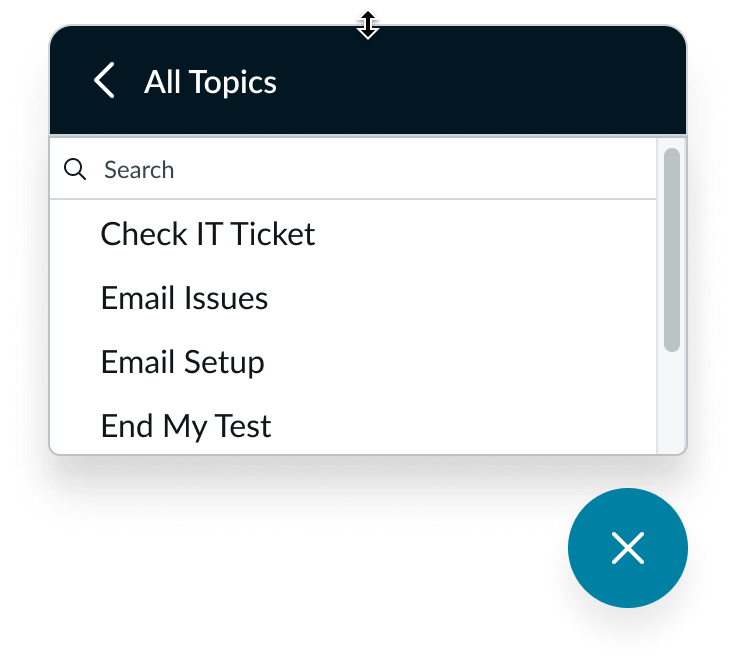

cursor above the modeless dialog to increase its height

In this example, the user's cursor appears over the edge of the modeless dialog to show that they can resize it.

Truncation

The modeless dialog is a container for content and components. The text within the content area and footer should follow content best practices and avoid truncation when possible.

The header title text wraps to a second line.

Usability

Modeless dialog complies with all internationalization and accessibility requirements.

Internationalization

The modeless window is a container for content and components. Therefore, it is important that any content or components within it adhere to internationalization standards.
When the display translates to a right-to-left (RTL) language, the modeless dialog flips in its orientation. The order of importance changes to right-to-left in the dialog but remains top to bottom. The sort order configuration for LTR and RTL versions remains the same.

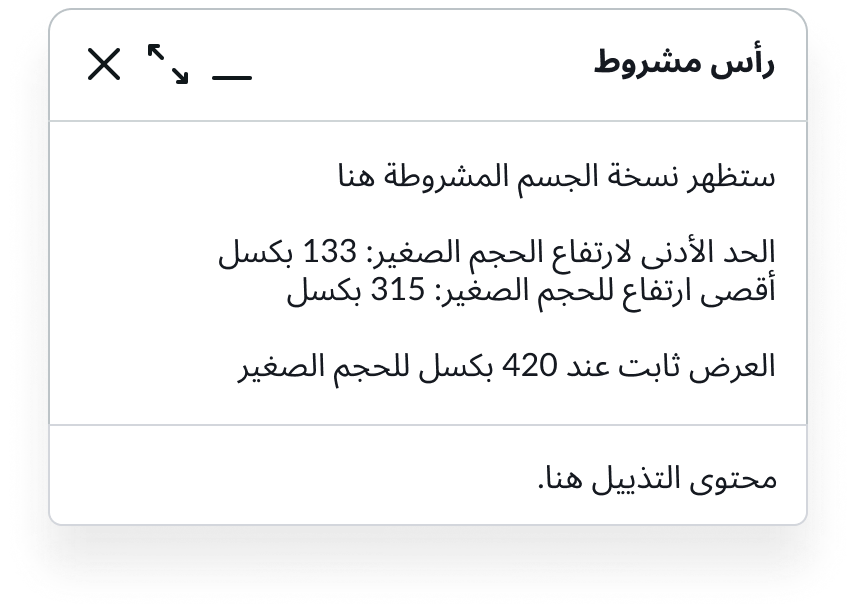

Modeless dialog showing right-to-left language text

Accessibility

Learn how to access the actionable elements of modeless dialog through keyboard interactions and screen readers.

Modeless dialog tab order

Note: Truncated text becomes focusable if you have the “Enable keyboard focus on truncated text” option on. Go to your OS Preferences > Accessibility panel and set this option to True. In modeless dialog, a truncated title becomes focusable and displays the full text in a tooltip.

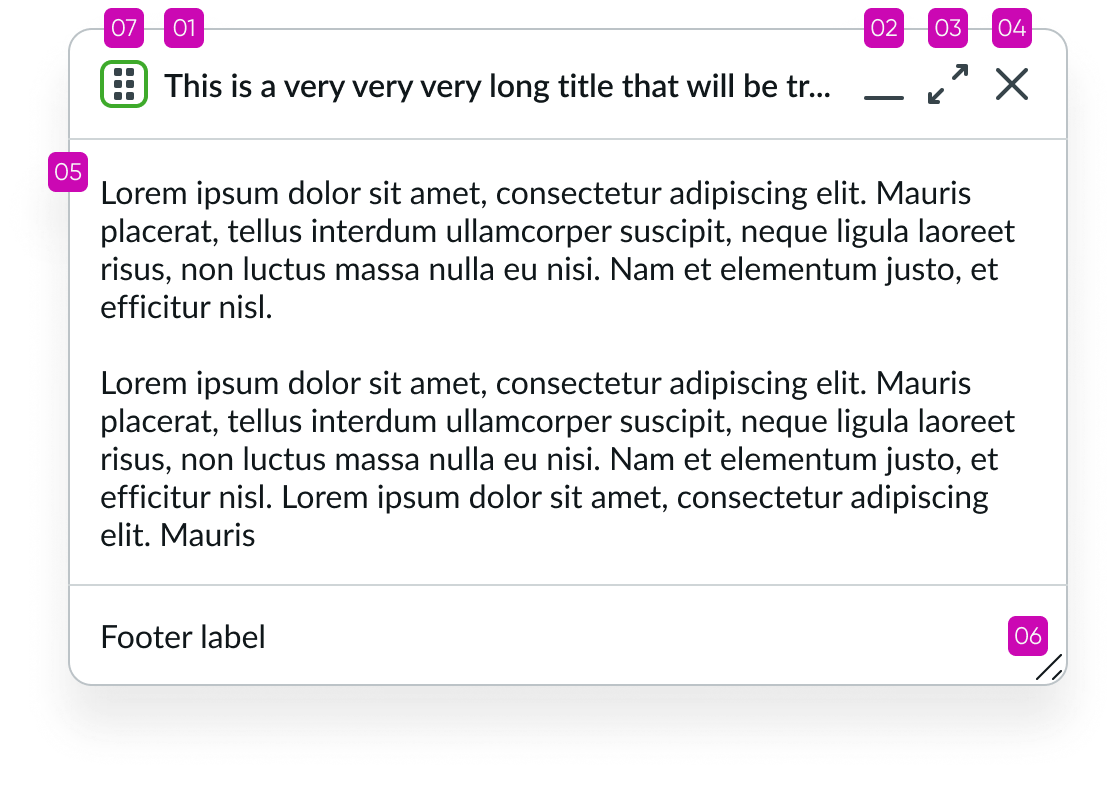

Tab order of modeless dialog with the dialog as the first tab stop the header infro from left to right tab stops next, then content area, followed by footer content from left to right

Keyboard interactions

When using the modeless dialog, it’s important to manage focus either to the header or first interactive element. Every modeless dialog component should have at least one focusable control.

You can access the actionable elements of modeless dialog with these keyboard keys:

  • Tab: Moves focus to the next element inside the modeless dialog; if focus is on the last element, closes the modeless dialog
  • Shift + Tab: Moves focus to the previous element inside the modeless dialog
  • Enter/return: Triggers element action
  • Escape or Spacebar (with focus on x): Closes the modeless dialog

When the focus is on the resize icon in the bottom right corner:

  • Up or down arrow: Resizes window larger vertically
  • Left or right arrow: Resizes window larger horizontally
  • Shift + up or shift + down arrow: Resizes window smaller vertically
  • Shift + left or shift + right arrow: Resizes window smaller horizontally

Focus on the drag and drop button:

  • Spacebar or Enter/return: Enables drag and focus moves to dialog

Focus on dialog from drag and drop:

  • Tab or Enter/return: Exits dragging and returns focus to drag and drop button
  • Up or down arrow: Moves dialog up or down in small increments
  • Left or right arrow: Moves dialog left or right in small increments
  • Shift + left or right arrow: Moves dialog left or right by 10 pixels
  • Shift + up or down arrow: Moves dialog up or down by 10 pixels
  • Page Up or Page Down: Moves dialog to top or bottom of viewport
  • Home or End: Moves dialog to left or right of viewport

Screen readers

The modeless dialog requires an accessible name. To configure the name, use the ‘aria-label’ attribute. The accessible name should match the modeless dialog heading. If no heading is visible, the accessible name should convey the purpose of the dialog.
